Bringing PCIe Gen 4.0 support to Intel

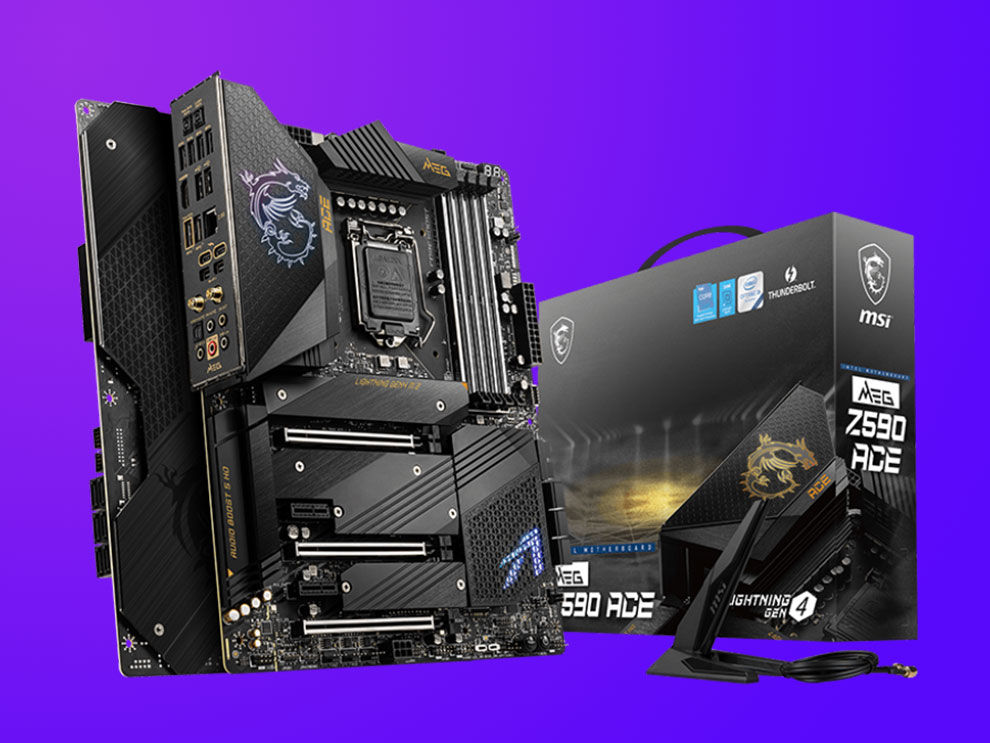

MSI MEG Z590 ACE is the latest member of the ACE lineup of flagship motherboards from MSI and it’s built to make the most of the Intel Z590 platform for their latest 11th Gen Intel Core “Rocket Lake” desktop processors. The MEG Z590 ACE is right at the top alongside the MSI MEG Z590 GODLIKE and the MPG Z590 CARBON EK X. We haven’t spotted the MSI MEG Z590 ACE selling in India yet so we can’t comment on the Indian price but a peek at Newegg shows the board listed for USD 587 which works out to a little over INR 50K with 18% GST added to the direct forex conversion. The actual price could very well end up a little higher. Comparing this to the launch price of the MSI MEG Z490 ACE tells us that it’s a bit more expensive but then again we get PCIe Gen 4.0 on the Z590 boards (provided they’re paired with an 11th Gen CPU) and that does add up a little. Let’s take a closer look at the MEG Z590 ACE.

MSI MEG Z590 ACE Gaming Motherboard for Intel 11th Gen

Packaging

We see the same colour scheme on the MEG Z590 ACE as we did on the MSI MEG Z490 ACE. The same black and gold aesthetic with a slightly different style language is used here. The packaging holds no punches in screaming out about PCIe Gen 4.0. The RGB elements have been toned down comparatively. We have a new RGB dragon logo on the rear I/O shroud and another one tacked onto the PCH heatsink. That being said, all the connectors for the different RGB ecosystems are all present so no matter which RGB ecosystem you go with, you should be able to make it work without any trouble. There’s a bit more metal on the board in the form of additional M.2 heatsinks and that gives the board a more unibody look.

MSI MEG Z590 ACE Specifications

To view the detailed specification list for different versions of the motherboard, please refer to MSI’s official website.

Processor

  • Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
  • Processor socket LGA1200

Chipset

Memory

  • 4x DDR4 memory slots, support up to 128GB
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
  • Max overclocking frequency:
  • 1DPC 1R Max speed up to 5600 MHz
  • 1DPC 2R Max speed up to 4800+ MHz
  • 2DPC 1R Max speed up to 4400+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)

Expansion Slots

  • 3x PCIe x16 slots
    • Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4
    • PCI_E1 & PCI_E3 slots (From CPU)
      • Support up to PCIe 4.0 for 11th Gen Intel® CPU
      • Support up to PCIe 3.0 for 10th Gen Intel® CPU
    • PCI_E5 slot (From Z590 chipset)
  • 2x PCIe 3.0 x1 slots (From Z590 chipset)

Multi-GPU

  • Supports 2-Way NVIDIA SLI Technology
  • Supports 3-Way AMD CrossFire Technology

ONBOARD GRAPHICS

  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

THUNDERBOLT 4

  • Intel JHL8540 Thunderbolt 4 Controller
    • 2x Thunderbolt 4 (USB-C) ports on the back panel
    • Support up to 40Gbps transfer rate with Thunderbolt devices
    • Support up to 20Gbps transfer rate with USB4 devices
    • Support up to 10Gbps transfer rate with USB 3.2 devices
    • Support up to 5V/3A ,15W power charging
    • Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
    • Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel)

Storage

  • 6x SATA 6Gb/s ports (from Z590 chipset)
  • 4x M.2 slots (Key M)
    • M2_1 slot (from CPU)
      • Available only on 11th Gen Intel® CPU
      • Supports up to PCIe 4.0 x4
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_21, M2_32, M2_4 slots (from Z590 chipset)
      • M2_2 , M2_3 & M2_4 support up to PCIe 3.0 x4
      • M2_2 & M2_3 support up to SATA 6Gb/s
      • M2_4 slot supports PCIe only.
      • Supports 2242/ 2260/ 2280 storage devices
      • Intel® Optane™ Memory Ready4
  • Supports Intel® Smart Response Technology for Intel Core™ processors
  • SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
  • SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_3 slot.
  • M2_4 bandwidth will switch from x4 to x2 when PCI_E5 slot is occupied.

RAID

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

  • Intel Z590 Chipset
  • 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector)
  • 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel, 2 ports available through internal USB connector)
  • 2x USB 2.0 Type-A ports on the back panel
  • Hub-GL850G
  • 4x USB 2.0 ports through internal USB connectors

Audio

  • Realtek ALC4082 Codec + ESS SABRE 9018Q2C Combo DAC/HPA
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1x Intel® I225V 2.5Gbps LAN controller

WiFi & Bluetooth

  • Intel Wi-Fi 6E AX210
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz1 (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth 5.22, FIPS, FISMA

Internal connectors

  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 1x 6-pin PCIE power connector
  • 6x SATA 6Gb/s connectors
  • 4x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C connector
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2x USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 1x Tuning Controller connector

Back panel ports

  • Clear CMOS Button
  • USB 3.2 Gen1 5Gbps (Type-A)
  • USB 2.0
  • 2.5G LAN
  • Thunderbolt 4 40Gbps (Type-C)
  • Wi-Fi / Bluetooth
  • HD Audio Connectors
  • Flash BIOS Button
  • HDMI
  • USB 3.2 Gen2 10Gbps (Type-A)
  • Mini DisplayPort Input (for Thunderbolt passthrough)
  • Optical S/PDIF-Out

Dimensions

  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor

Mounting

Operating System

  • Support for Windows 10 64-bit

Package contents

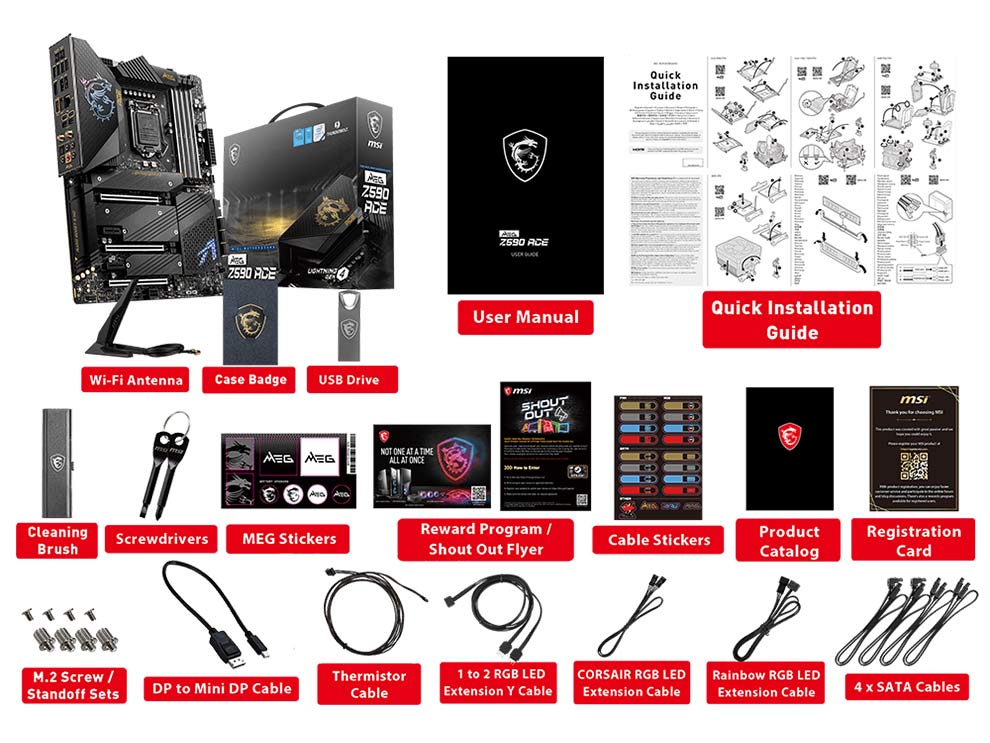

Like all flagship motherboards, the MSI MEG Z590 ACE comes with plenty of accessories and essential cables in the box. We see a couple of new additions over the older gen Z490 board. Aside from the usual user manual, quick start guide and SATA cables and stickers, we see a cleaning brush, pair of Philips and flathead screwdrivers, DP to mini-DP cable, RGB extension cables, and cables for RAINBOW and Corsair RGB connectors.

MSI MEG Z590 ACE Gaming Motherboard for Intel 11th Gen package contents

The pair of screwdrivers and cleaning brush is an odd but welcome addition to the accessory bunch. We certainly had a lot of use for the screwdrivers right out of the box. Given the mesh design and the textured surfaces used across the board, we’re certain that the brush is going to come handy as well.




















MEG Z490 ACE

Quantity

Documentation

User manual

1

Registration card

1

Quick installation guide

1

Application

Driver USB

1

Cables

SATA 6G cables (2 per pack)

2

Thermistor cable

1

RGB Y extension cable

1

Corsair RGB cable

1

RAINBOW RGB cable

1

DP to mini-DP cable

1

Accessories

Wi-Fi Antenna

1

Case badge

1

Screwdrivers

2

SATA cable stickers

1

Product catalog

1

M.2 screw (4 per pack)

1

Board Layout

The MSI MEG Z590 ACE is packed to the hilt with features and has a very busy layout. Thankfully, the massive heatsinks spread across the length and breadth of the motherboard manage to hide it all and give it a cleaner look. Let’s take a close look at the components.

CPU Area and VRM

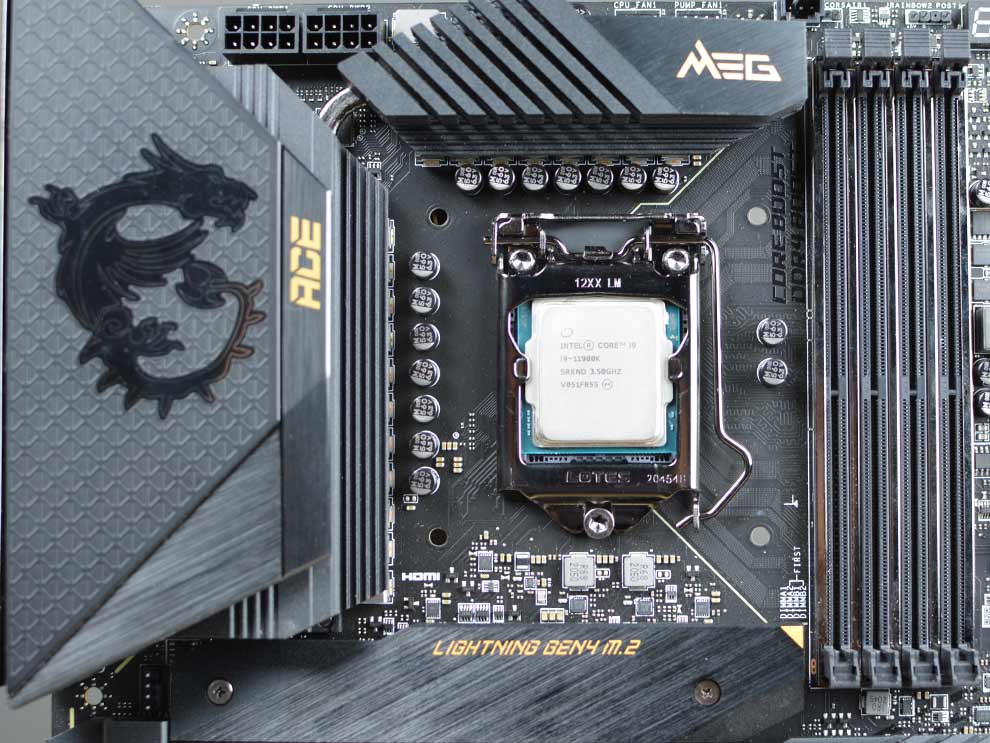

The CPU area is quite packed from all sides but the screw mounting holes have plenty of clearance. VRM heatsinks on the top and sides aren’t ridiculously tall. You should have no trouble installing most CPU coolers on this board. Low-profile coolers would be a little difficult to install. The VRM heatsinks are massive metal chunks with a single heat pipe running through them. The board uses two 8-PIN EPS connectors which are situated on the top-left and we had no problems while plugging or unplugging the power connectors after the board was mounted into a chassis.

MSI MEG Z590 ACE Gaming Motherboard CPU for Intel 11th Gen

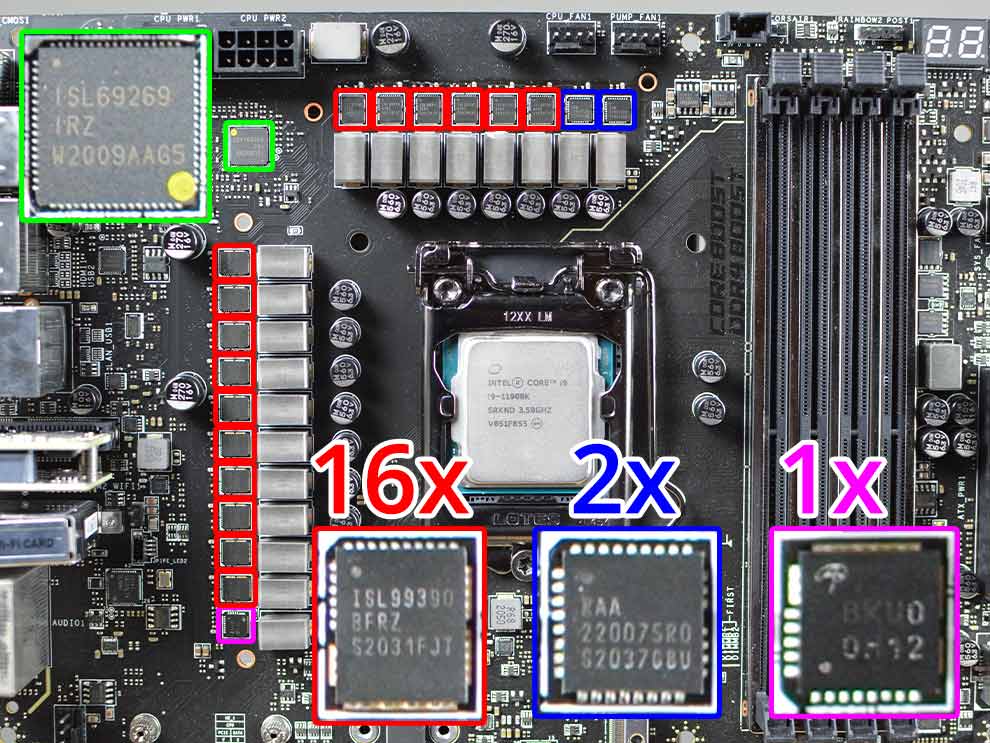

After taking the heatsinks off the board we get to take a gander at the VRM. The MSI MEG Z590 ACE uses the same Intersil ISL69269 controller as the Z490 ACE. For the power stages, it uses 16 Intersil ISL99390 90 Amp MOSFETs and for the SOC, it uses two Renesas RAA220075 75 Amp MOSFETs. MSI states that they’ve gone with a 16+2+1 power phase design on this motherboard. The Intersil ISL69269 controller can only handle up to 12 phases, so MSI is using doublers here to get the 16 phases for the Vcore and while the two phases for the SOC are not using any doublers. These doublers used are Renesas ISL617A and they can be seen on the rear of the board underneath the aluminium backplate.

MSI MEG Z590 ACE Gaming Motherboard VRM for Intel 11th Gen

At the end of the day, the Vcore can use up to 1440 Amperes via this setup so you’ve got a pretty capable VRM set up here.

RAM Slots

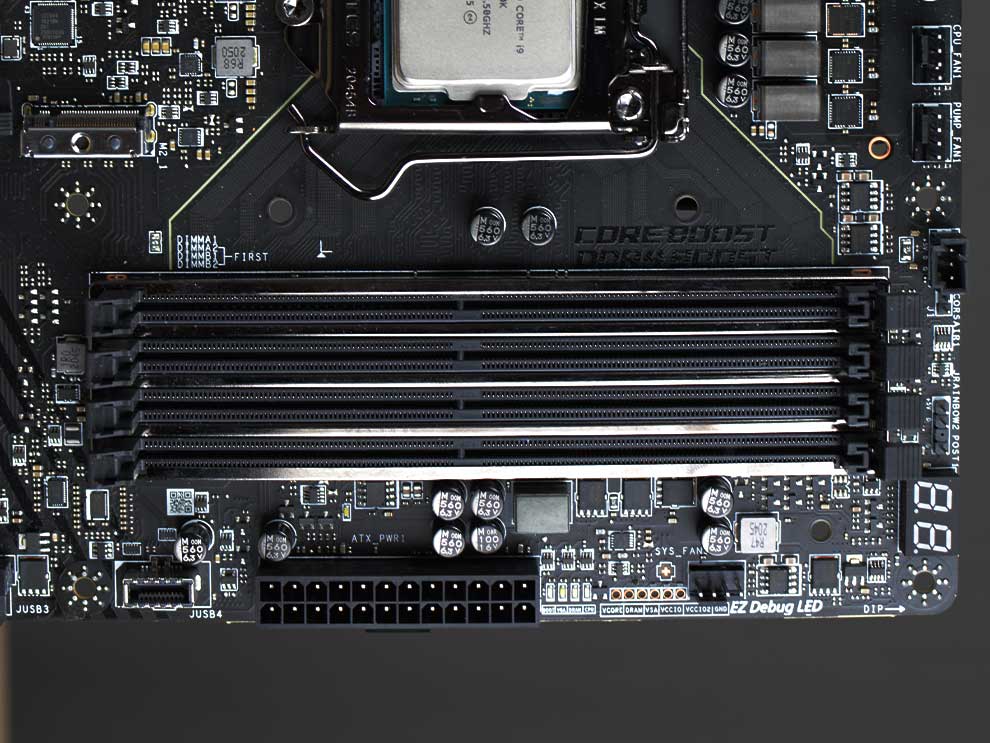

There’s a decent amount of clearance between the CPU socket and the RAM slots. Speaking of which, MSI is using slots with latches on just one side. This is a bit convenient to install modules into, especially when you consider the fact that the bottom-end of the RAM slots tend to be situated a little too close to the graphics card. So unlatching the bottom-end becomes difficult. In this case, you’re not going to face that issue. The RAM slots themselves have metal shields to add some rigidity.

MSI MEG Z590 ACE Gaming Motherboard RAM for Intel 11th Gen

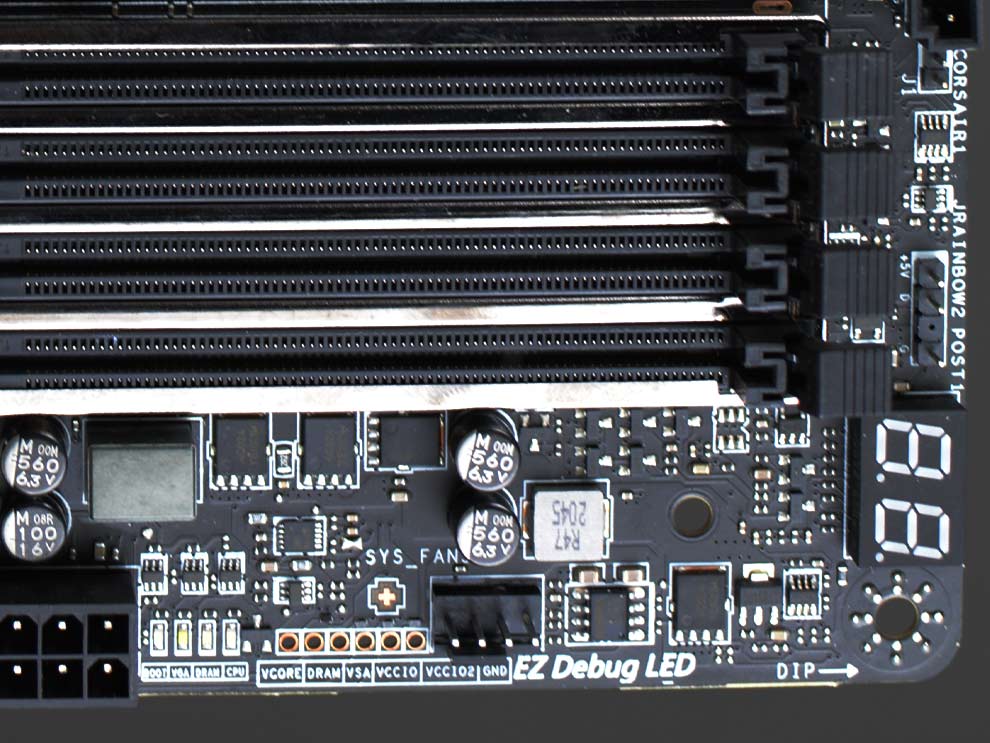

Around the top of the RAM slots, we have two PWM fan headers, the RGB connectors and the debug code LED indicator. On the right of the RAM slots, you see a few test pads and the boot-up status LEDs right next to the main 24-pin ATX power connector.

MSI MEG Z590 ACE Gaming Motherboard RAM for Intel 11th Gen

Expansion slots

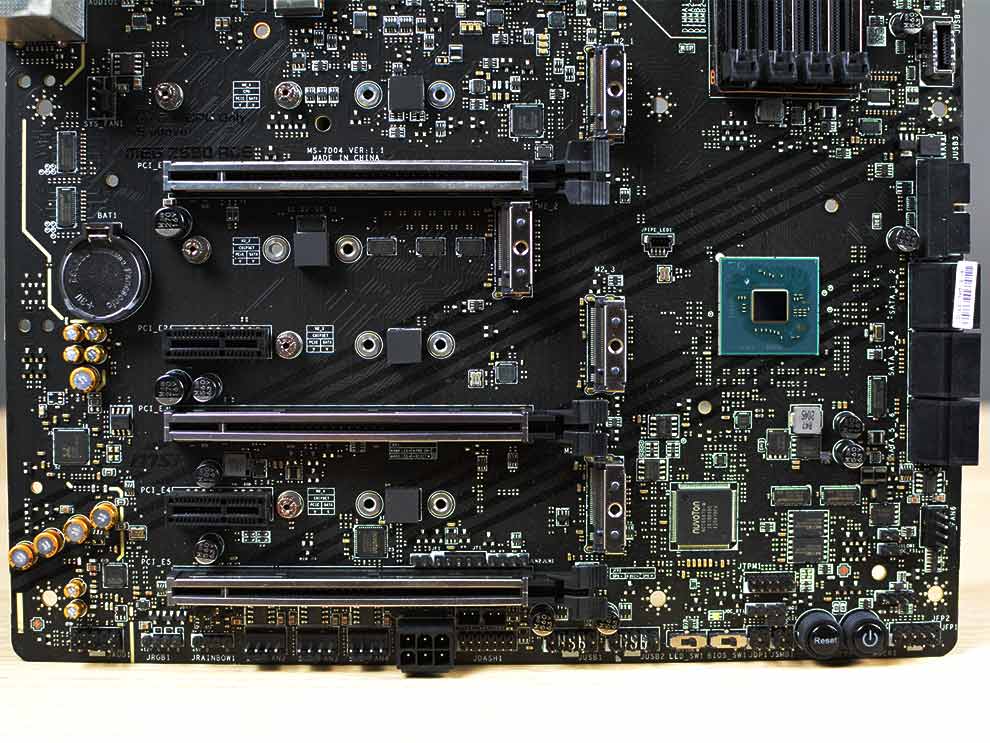

The MSI MEG Z590 ACE has 3 x16 PCIe slots, 2 x1 PCIe slots and 4 NVMe slots. The first two of the x16 PCIe slots are from the CPU and the third one comes from the PCH. The ones coming from the CPU support PCIe Gen 4.0 when a 11th Gen CPU is installed and the third x16 PCIe slot comes from the chipset so you only get PCIe Gen 3.0 on that. These slots can be configured in either a 16/0/4 arrangement or in an 8/8/4 arrangement. The two x1 PCIe slots come from the PCH. Talking about multi-GPU configurations, you can have a 3-way CrossFire or 2-way SLI. Although multi-GPU configurations are being phased out by manufacturers so unless you’re using GPUs for GPGPU compute, these are worthless.

MSI MEG Z590 ACE Gaming Motherboard PCIe M.2 Expansion slots for Intel 11th Gen

With all the heatsinks removed, we see there are four 110mm M.2 slots on the MEG Z590 ACE. The first one is capable of PCIe Gen 4.0 when an 11th Gen CPU is installed while the remaining three only support PCIe Gen 3.0. The second and third M.2 slots from the top also support SATA drives and share bandwidth with the SATA ports on the right. The Z490 chipset supports RAID 0, 1, and 10 for SATA and RAID 0 and 1 for M.2. There is no option for RAID 5 since that requires a minimum of three drives to be connected via the same protocol. The MSI MEG Z590 ACE makes use of ASMedia ASM1480 mux/demux for handling the PCIe lanes between all the connectors.



Onboard Connectors

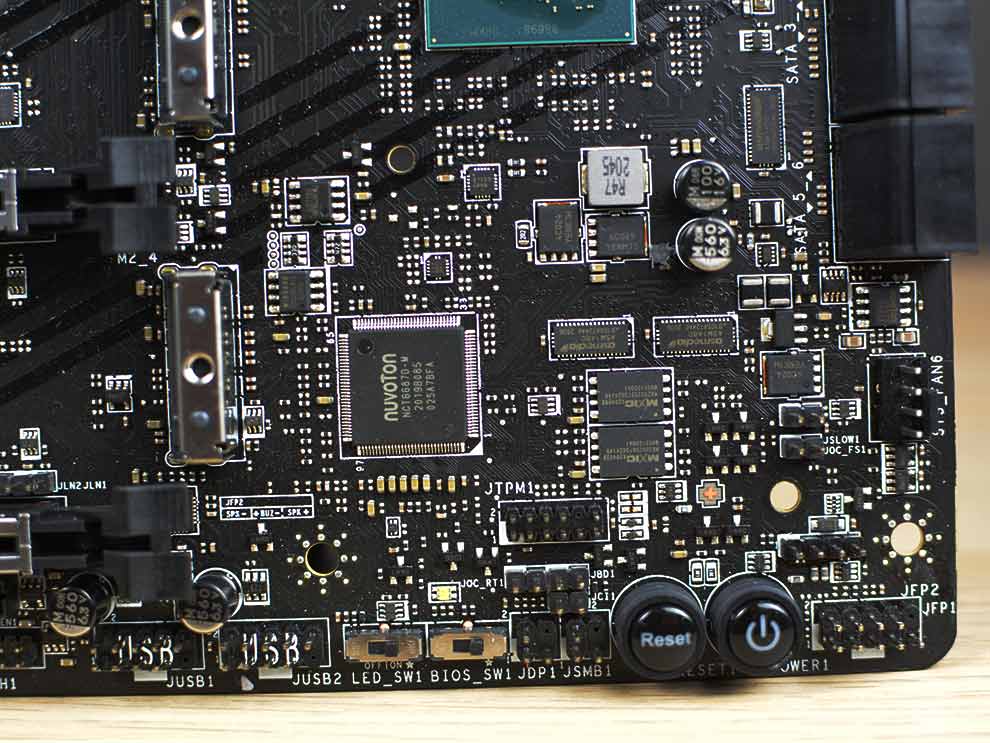

The MSI MEG Z590 ACE has a decent set of onboard connectors. We counted 6x PWM fan connectors along with 1x 4-pin CPU fan connector and 1x high-amp 4-pin water pump connector for AIOs.

MSI MEG Z590 ACE Gaming Motherboard board connectors for Intel 11th Gen

The physical LED switch right next to the power switch is a nice addition for folks who don’t want to dig through the BIOS to disable all the LEDs.

Audio

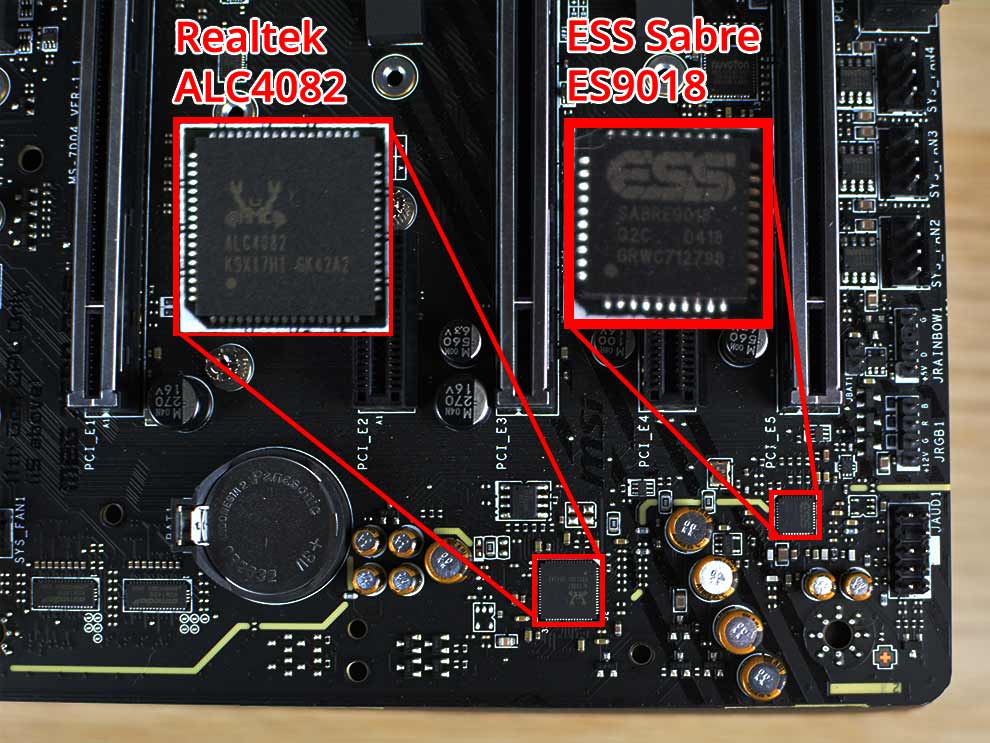

Usually, the audio CODEC doesn’t change for a couple of years with just minor improvements being visible across several generations of motherboards. That is not the case here since the MSI MEG Z590 ACE comes with the latest Realtek ALC4082 audio CODEC. It’s aided by the ESS SABRE 9018 Q2C audio DAC that was introduced six years ago. At least some things have changed.

MSI MEG Z590 ACE Gaming Motherboard audio for Intel 11th Gen

Like most flagship boards, the audio circuitry on the MEG Z590 ACE is shown to have a physical separation to reduce interference. We don’t see any shielding used on the CODEC or the DAC.

Rear I/O

There’s no active cooling elements within the rear I/O shroud this time so we…
