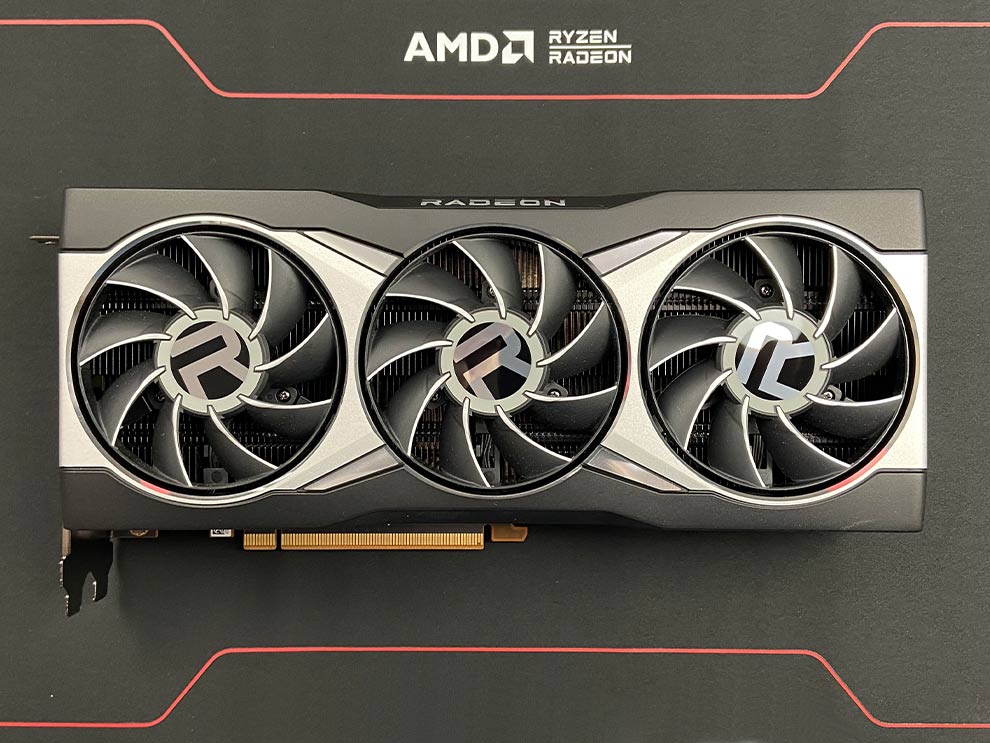

A great 4K gaming graphics card

The AMD Radeon RX 6900 XT is what we have been waiting for so long. A flagship graphics card that towers above all the oompa-loompas. We recently reviewed the Radeon RX 6800 XT and 6800, and found them to be quite compelling in terms of performance. The Indian pricing for the RX 6800 XT was a shocker but its younger sibling, the RX 6800 was optimally priced and retained its position in the GPU hierarchy in line with international markets. Stocks have been quite low and we have no reason to suspect otherwise in the case of the 6900 XT as well. However, the reference card is priced at INR 94,388 (SEP 79,990) which comes as a relief after the disastrous pricing of the 6800 XT. We’ll see how that works out for the Indian market towards the end of our review.

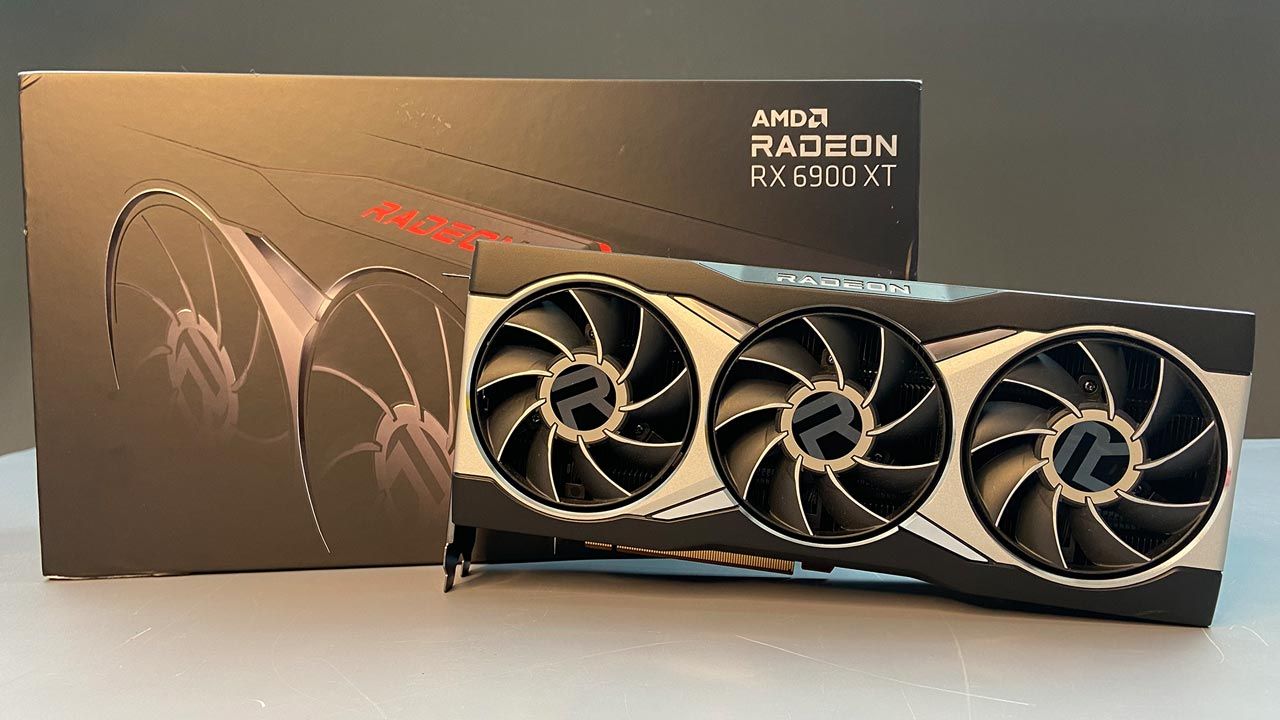

AMD Radeon RX 6900 XT Graphics Card Review

When we’d reviewed the RX 6800 XT and 6800, AMD was the only one to take advantage of the resizeable-BAR feature of PCIe 4.0 to allow their CPUs (Ryzen Zen 3) to address all of the GPUs video buffer. Since then, we’ve heard that NVIDIA is already working towards incorporating the same and some Intel Z490 motherboards have already pushed the feature via BIOS updates. Either all vendors see great potential in this feature or it’s an easy marketing opportunity that they’d all want to take advantage of. We’ll get a better idea in the coming year.

AMD Radeon RX 6900 XT Graphics Card Review

AMD Radeon RX 6900 XT Specifications

The AMD Radeon RX 6000 series GPUs use the same 7nm process node as what a lot of the other AMD IPs use. TSMC has been working on improving the node so some of those improvements will result in minor efficiency improvements. AMD’s architectural enhancements contribute to the rest of the performance gains. Like the previous two cards that we have reviewed previously, the Radeon RX 6900 XT is also using the same GPU. We have a total of 80 Compute Units which is 8 more than the 6800 XT and the die is the same 519 mm2. We are really hoping that some adventurous enthusiasts would cross flash a 6800 or a 6800 XT to get a 6900 XT. The chances are low considering that the cooling required for a 6900 XT is much more than the 6800 XT. So if the TDP is enough to dissipate the extra heat, then it should be fine. We’re not saying, you should, but if you do, let us know.






















  RX 6900 XT RX 6800 XT RX 6800 RX 5700 XT RX 5700 RX 5600 XT
Architecture RDNA 2 RDNA 2 RDNA 2 Navi Navi Navi
Process 7nm 7nm 7nm 7nm 7nm 7nm
Transistor Count 26.8 billion 26.8 billion 26.8 billion 10.3 billion 10.3 billion 10.3 billion
Die Size 519 mm2 519 mm2 519 mm2 251 mm2 251 mm2 251 mm2
Compute Units 80 72 60 40 36 36
Stream Processors 5120 4608 3840 2560 2304 2304
Base Clock 1825 MHz 1825 MHz 1700 MHz 1605 MHz 1465 MHz 1230 MHz
Game Clock 2015 MHz 2015 MHz 1815 MHz 1755 MHz 1625 MHz 1375 MHz
Boost Clock 2250 MHz 2250 MHz 2105 MHz 1905 MHz 1725 MHz 1560 MHz
Peak Engine Clock n/a n/a n/a n/a n/a n/a
TFLOPs SP 23 TFLOPS 20.74 TFLOPS 16.17 TFLOPS 9.75 TFLOPS 7.95 TFLOPS 7.19 TFLOPS
TFLOPs Half Precision 46 TFLOPS 41.47 TFLOPS 32.33 TFLOPS 19.5 TFLOPS 15.9 TFLOPS 14.4 TFLOPS
Texture Fill-rate 720 GT/s 648.0 GT/s 505.2 GT/s 304.8 GT/s 248.4 GT/s 224.6 GT/s
ROPs 128 128 96 64 64 64
Pixel Fill-rate 288.0 GP/s 288.0 GP/s 202.1 GP/s 121.9 GP/s 110.4 GP/s 99.8 GP/s
Memory Capacity 16 GB 16 GB 16 GB 8 GB 8 GB 8 GB
Memory Type GDDR6 GDDR6 GDDR6 GDDR6 GDDR6 GDDR6
Memory Bandwidth 512 GB/s 512 GB/s 512 GB/s 448 GB/s 448 GB/s 288 GB/s
Memory Bus-width 256-bit 256-bit 256-bit 256-bit 256-bit 192-bit
TBP 300 W 300 W 250 W 225 W 185 W 150 W

Since more active CUs equals more active ray-tracing units, the 6900 XT will have much better performance in games that use DirectX Ray-tracing. What remains to be seen is if it beats the RTX 3090 or equals it.

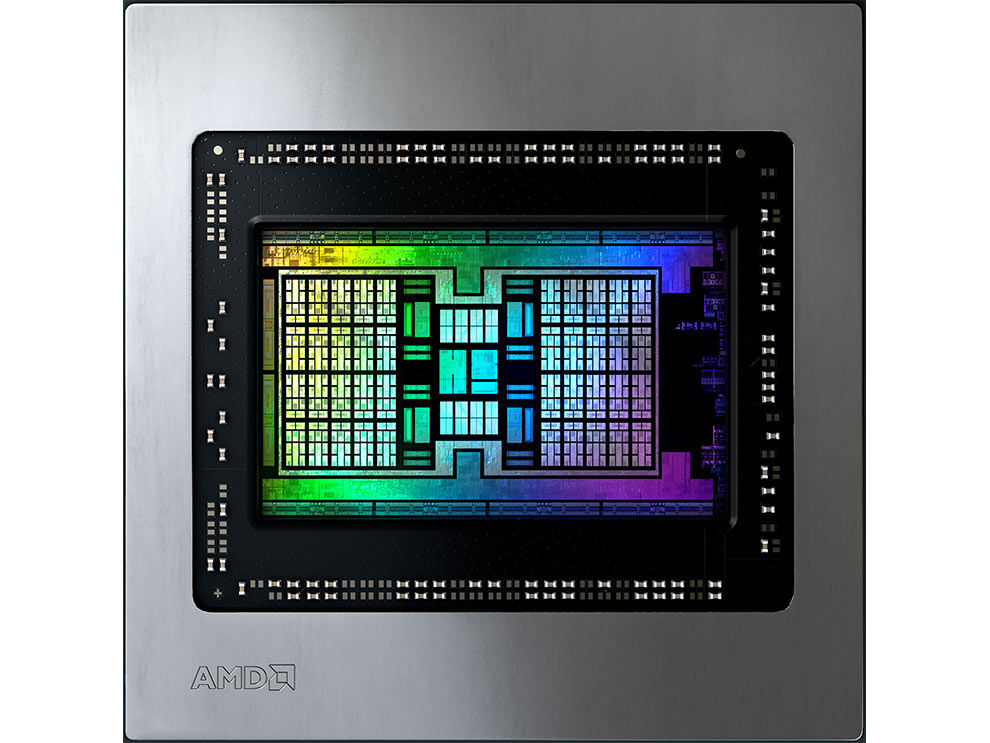

Radeon RDNA 2 RX 6000 Big Navi Die

With the new set of benchmarks, we’ve featured some of the older GTX 10 series cards along with most of the RTX 20 series cards including the Super cards. Last year’s AMD RX 5000 series cards are present to help gauge the generational improvement of RDNA2 against RDNA. Also included are the new RTX 30 cards so you can get a good idea of how the RDNA2 cards go up against NVIDIA’s latest GPUs. And since the launch windows of the two cards are overlapping, this list couldn’t have been more even. We have removed the older AMD Vega cards since we haven’t retested them in a long time and a lot of driver-related performance improvement cannot be gauged without a retest. Like always, we have a section for synthetic benchmarks as well as gaming benchmarks with plenty of charts to showcase differences. Coming to the rig, we’ve had to test the cards on Intel as well as AMD processors considering the inclusion of the new Smart Memory Access feature. We’ve tried to keep the rigs as similar as we could. Here are the two rigs that we’re running our benchmarks on.

INTEL RIG

Processor – Intel Core i9-10900K

CPU Cooler – Corsair H115i RGB PLATINUM

Motherboard – ASUS ROG MAXIMUS XII EXTREME

RAM – 2x 8 GB G.Skill Trident Z Royal 3600 MHz

SSD – Kingston KC2500 NVMe SSD

PSU – Cooler Master V1200

AMD RIG

Processor – AMD Ryzen 9 5950X / 5900X

CPU Cooler – Corsair H115i RGB PLATINUM

Motherboard – ASUS ROG CROSSHAIR VIII

RAM – 2x 8 GB G.Skill Trident Z Royal 3600 MHz

SSD – WD SN550 Blue 1 TB NVMe SSD

PSU – Cooler Master V1200

Graphics cards

AMD RX 6900 XT

AMD RX 6800 XT

AMD RX 6800

RTX 3090

RTX 3080

RTX 3070

RTX 2080 Ti

RTX 2080 Super

RTX 2080

RTX 2070 Super

RTX 2070

RTX 2060 Super

RTX 2060

GTX 1080 Ti

GTX 1080

AMD RX 5700 XT

AMD RX 5700

AMD RX 5600 XT

Some of these cards were sourced from friends owing to the fact that the current lockdown situation has made it extremely difficult to get graphics cards in time for the benchmarks. Let’s start with the synthetic benchmarks.

3DMark

In 3DMark, we prefer the Fire Strike Ultra benchmark since the Extreme and normal runs have started producing ridiculous scores with newer GPUs. The other benchmark within 3DMark which we use is Time Spy and we run both, the normal run and the extreme run. Here, we’re showcasing Fire Strike Ultra and Time Spy scores. The Radeon RX 6900 XT beats the NVIDIA RTX 3090 with a decent margin. Considering that the latter is a $1,499 card, this isn’t a huge lead but the AMD card certainly offers more value for money. The Radeon RX 6800 XT and 6800 aren’t that far behind.

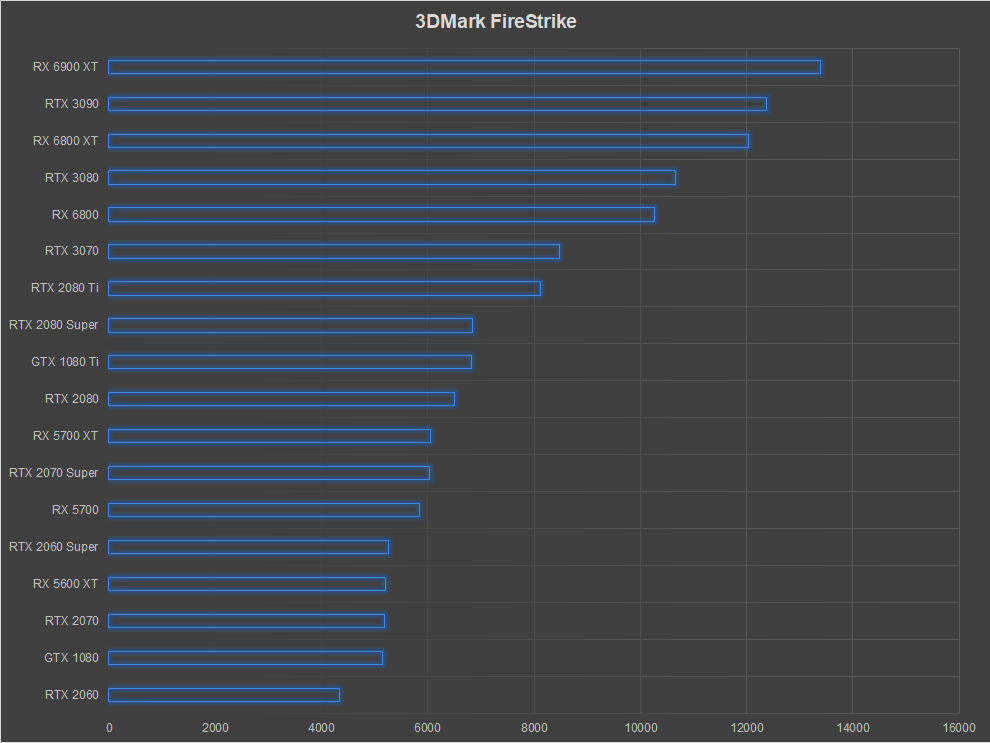

AMD Radeon RX 6900 XT Review 3DMark Fire Strike Ultra

Time Spy also see the RX 6900 XT maintain a healthy lead over the more expensive RTX 3090 from NVIDIA. The Radeon RX 6900 XT replaces the RTX 3090 from the top position on the scoreboard with the RTX 3080 in tow and the RX 6800 XT right behind it. Then comes the RX 6800 and after a decent gap lies the RTX 3070.

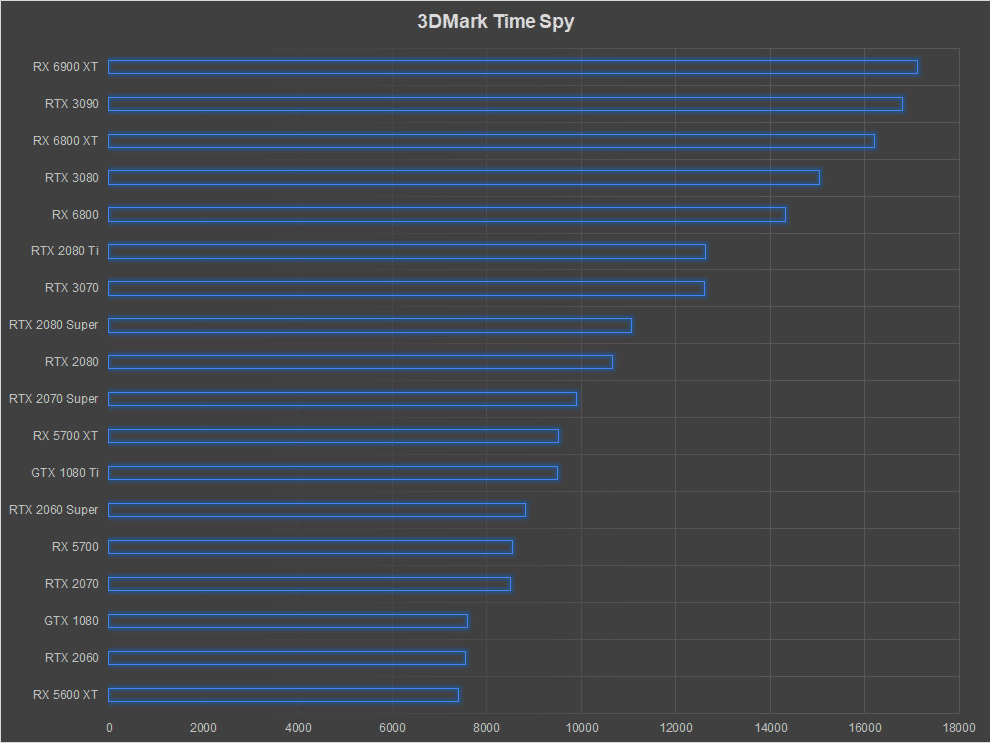

AMD Radeon RX 6900 XT Review 3DMark Time Spy

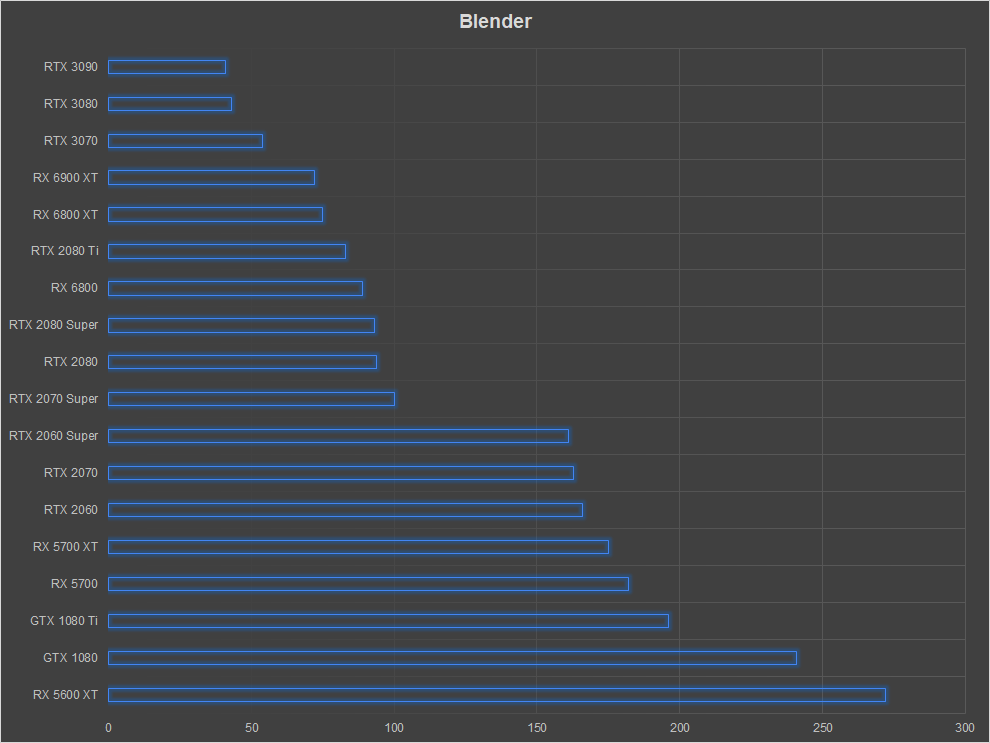

Blender GPGPU Render

Blender is a great benchmark that makes good use of the GPGPU parallelism within modern GPU microarchitectures. The results of this benchmark should be interpreted in an inverse manner. Lower scores are better and we see the RTX 3090 leading the set followed by other CUDA cards. The new RDNA2 cards start off from the 4th position with the RX 6900 XT followed by the RX 6800 XT.

AMD Radeon RX 6900 XT Review Blender GPGPU Render

Basemark GPU

Basemark GPU is a nice benchmark to compare the performance of different graphics APIs between cards. We can use the same textures with OpenGL, Vulkan and DirectX 12 to see if the graphics card excels at any particular API more than the rest or if the performance is consistent across the board. The RX 6800 comes third, behind the RTX 3090 and the RTX 3080. NVIDIA cards have a clear advantage in this benchmark and the gap between the RTX 3070 and the RX 6800 has narrowed. What stood out for us was the OpenGL performance as the RDNA 2 cards tanked compared to the competition and are showing only a meagre generational improvement.

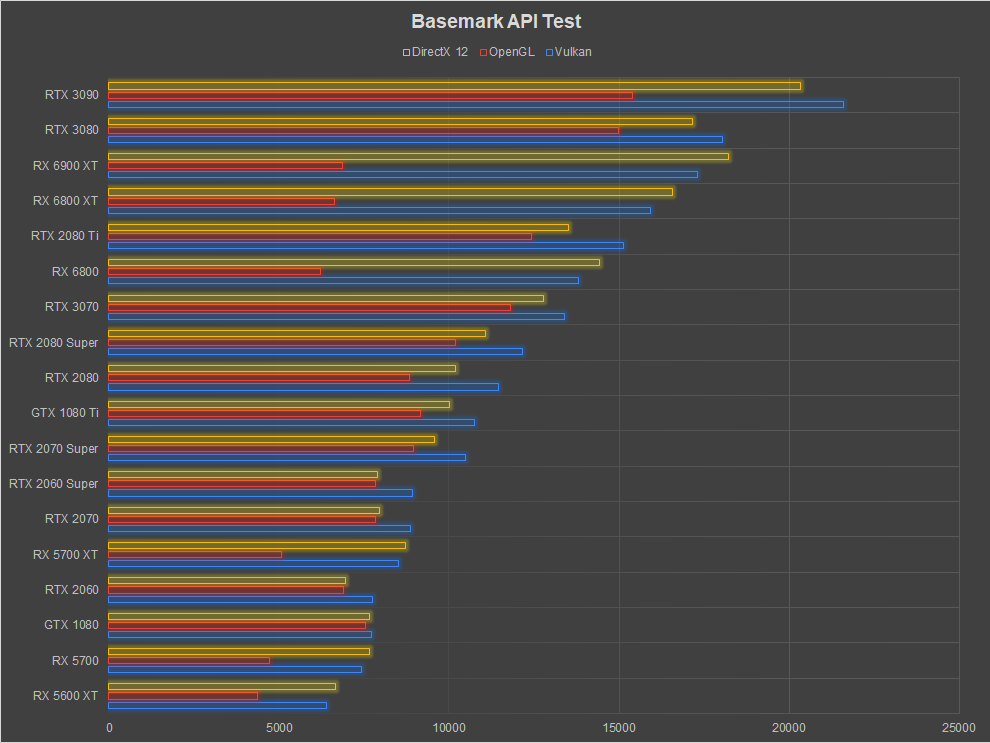

AMD Radeon RX 6900 XT Review Basemark

IndigoBench

This is the latest synthetic to be added to our test suite. IndigoBench is based on the Indigo 4 rendering engine that’s available for popular software such as SketchUp, Blender, 3ds Max, Cinema 4D, Revit and Maya. It uses OpenCL and can benchmark both, the CPU and GPU together or individually. We prefer to test just the GPU with the software and the score provided is in terms of .M samples/s’. The RTX 3090 and the RTX 3080 maintain a lead here whereas the RX 6800 XT and RX 6800 come in at the third and fourth positions. Performance difference between the RX 6800 XT and RX 6800 is also quite narrow.

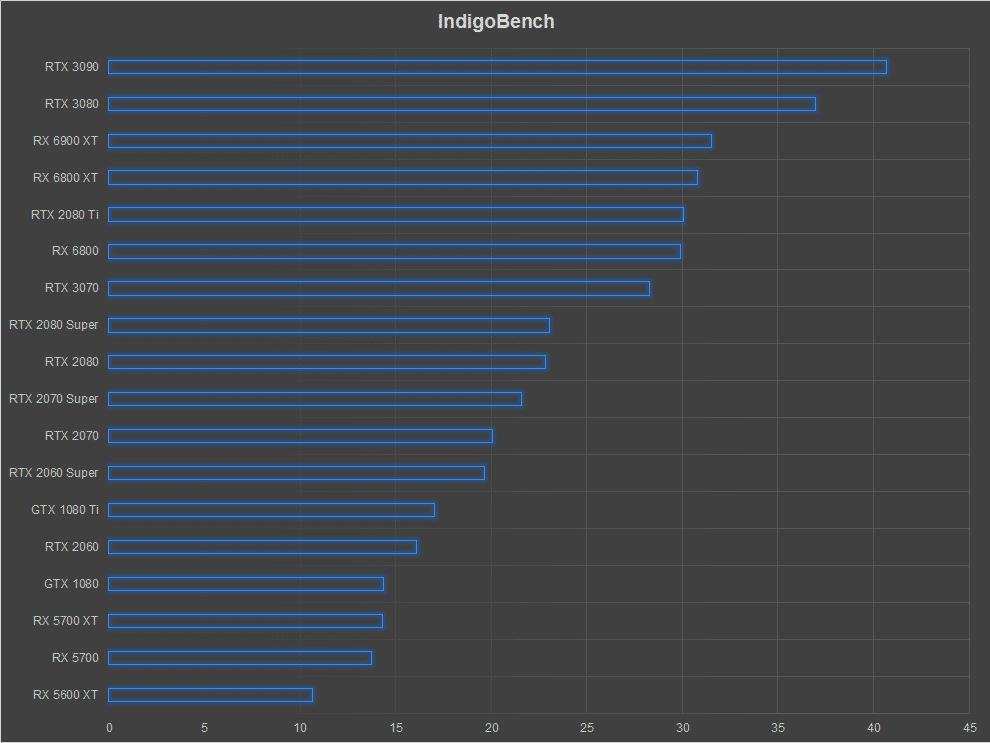

AMD Radeon RX 6900 XT Review Indigobench

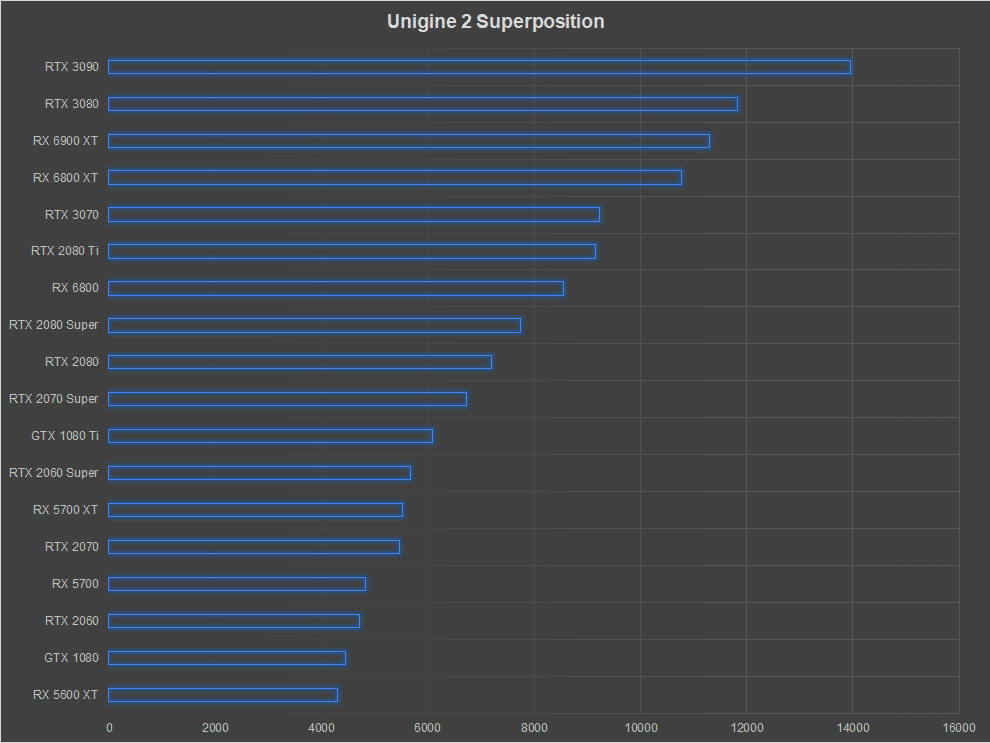

Unigine SuperPosition

Unigine SuperPosition is the other popular DX11 benchmark which we prefer to use alongside 3DMark. We run it on the Extreme Quality preset and use the score metric for delineating the performance between graphics cards. The NVIDIA cards retain the lead again but with a much narrow margin. The RX 6800 XT and the RTX 3080 are almost equivalent in this benchmark.

AMD Radeon RX 6900 XT Review Unigine Superposition

Borderlands 3

Gearbox’s latest game in the Borderlands franchise which uses Unreal Engine 4 and allows you to switch between DirectX 11 and 12. The game has an inbuilt benchmark which takes you through an array of stressful scenarios. The DirectX 12 version is quite flaky and we prefer to use the DirectX 11 API while benchmarking the game and all our existing data is based off the DX11 version so there’s no point switching now.

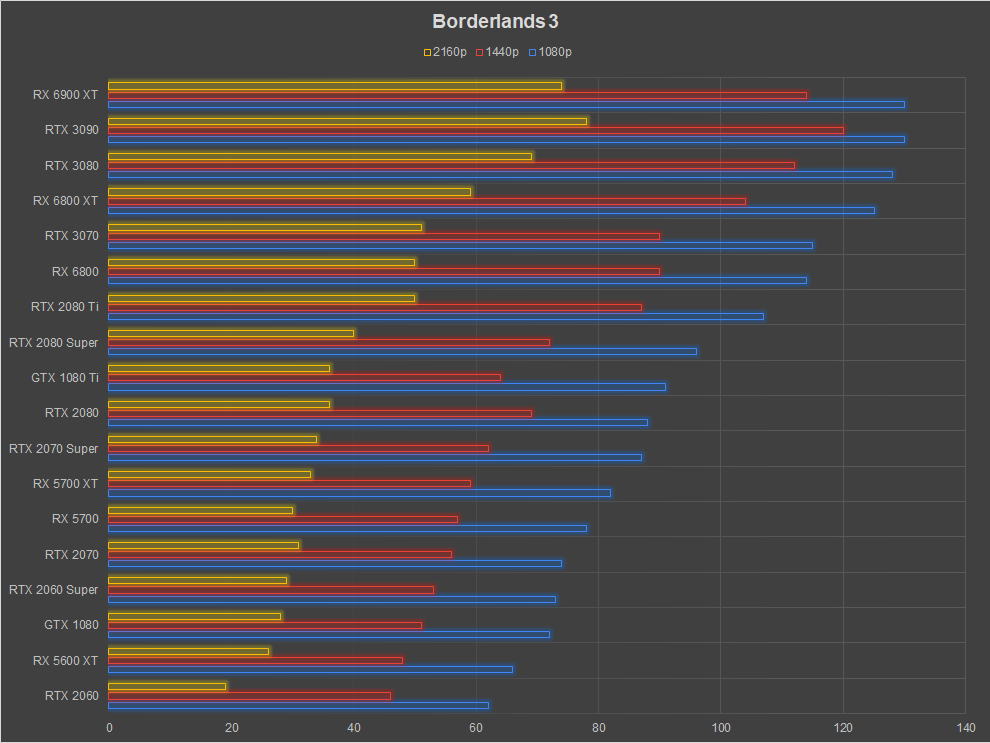

AMD Radeon RX 6900 XT Review Borderlands 3

Death Stranding

Hideo Kojima’s Death Stranding has been a recent addition to the PC scene and had been a PlayStation exclusive until July 2020. Being a console game, the game engine is quite optimised to make use of the scarce resources one gets with consoles. However, when 505 Games ported the game to PC, you wouldn’t end up calling the game a console port. The Decima game engine is capable of rendering up to 4K and can use high dynamic-range imaging and is also geared for the upcoming next-gen PlayStation console. It’s also the same engine used by Horizon Zero Dawn.

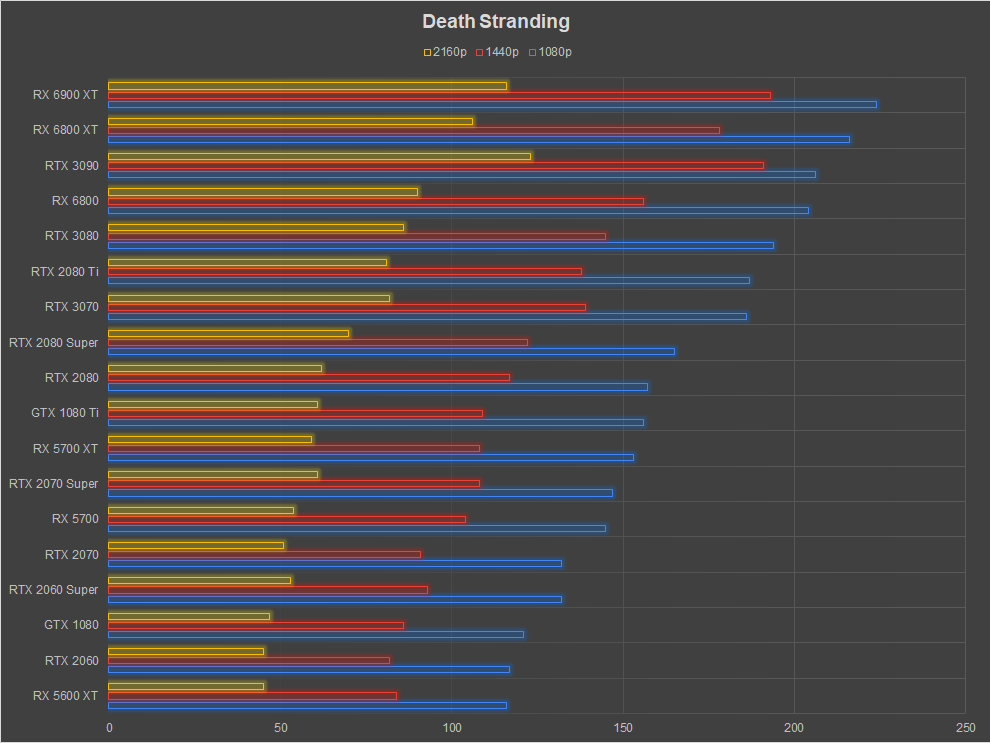

AMD Radeon RX 6900 XT Review Death Stranding

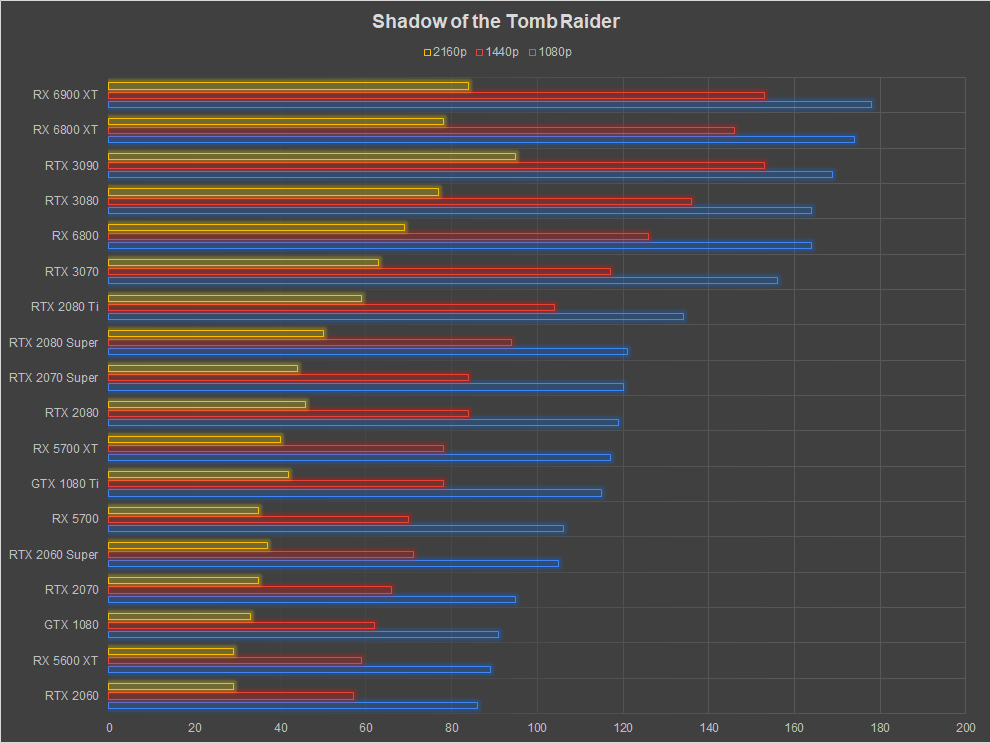

Shadow of the Tomb Raider

We run Shadow of the Tomb Raider in DirectX12 mode. It ends up consuming a little more memory as most games that support both DirectX 11 and DirectX 12. The preset is set to the highest quality and HBAO+ enabled. The ingame benchmark tool takes us through several scenes which feature open spaces as well as closed spaces with lots of world detail aside from the central character.

AMD Radeon RX 6900 XT Review Shadow of the Tomb Raider

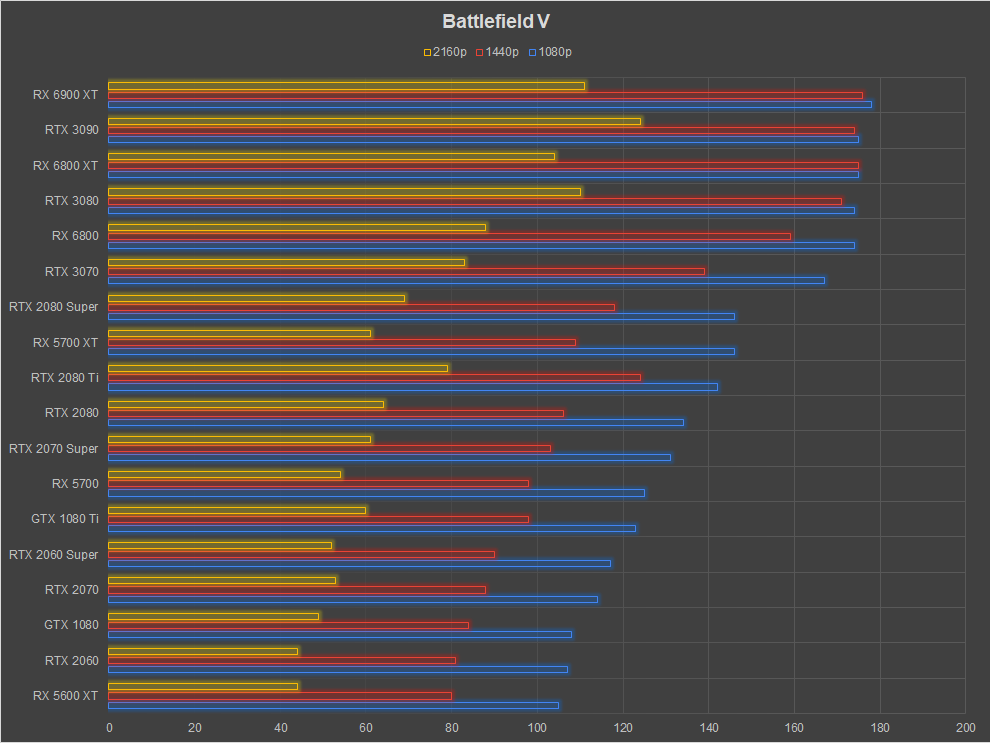

Battlefield V

Both GPU manufacturers like to showcase the performance of their GPUs in this popular AAA-game by EA. It’s one of the most popular FPS titles and has had a long legacy of incoporating new GPU hardware and software APIs. We run the benchmark on Ultra mode with most of the bells and whistles turned on.

AMD Radeon RX 6900 XT Review Battlefield V

Metro Exodus

Another AAA FPS title on our list, Metro Exodus is built on the 4A Engine and is graphically intensive. The game features a mix of large open levels and small spaces, and the graphics engine is capable of making current gen flagship GPUs crawl. At the same time, it has enough flexibility that the console versions are quite optimised. We run the game’s built-in benchmark for these tests.

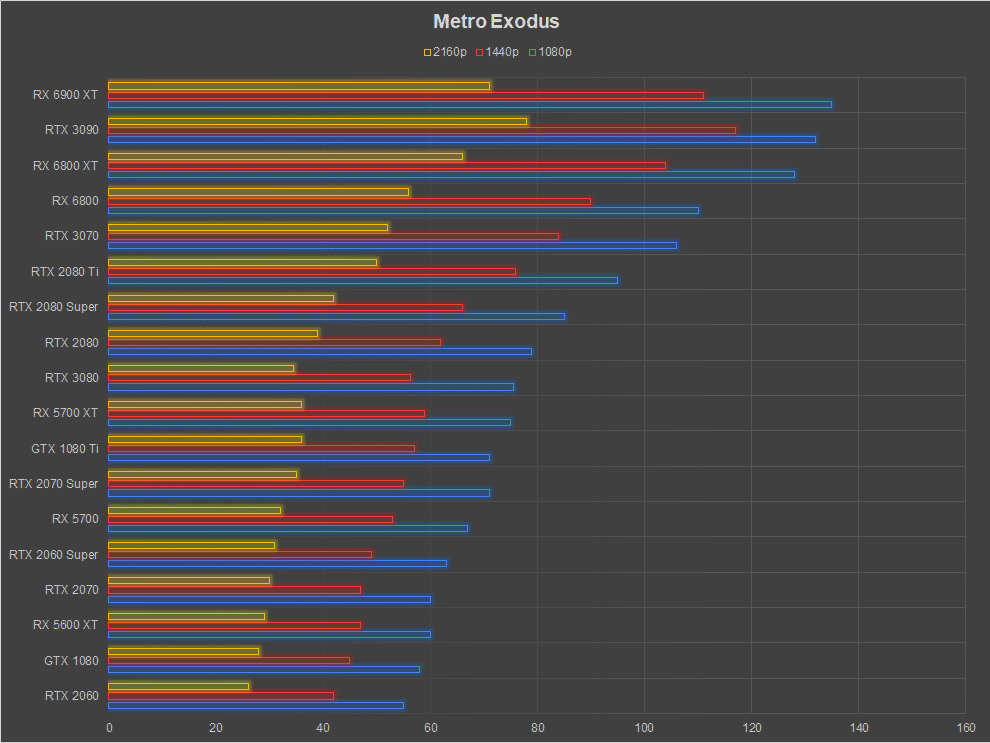

AMD Radeon RX 6900 XT Review Metro Exodus

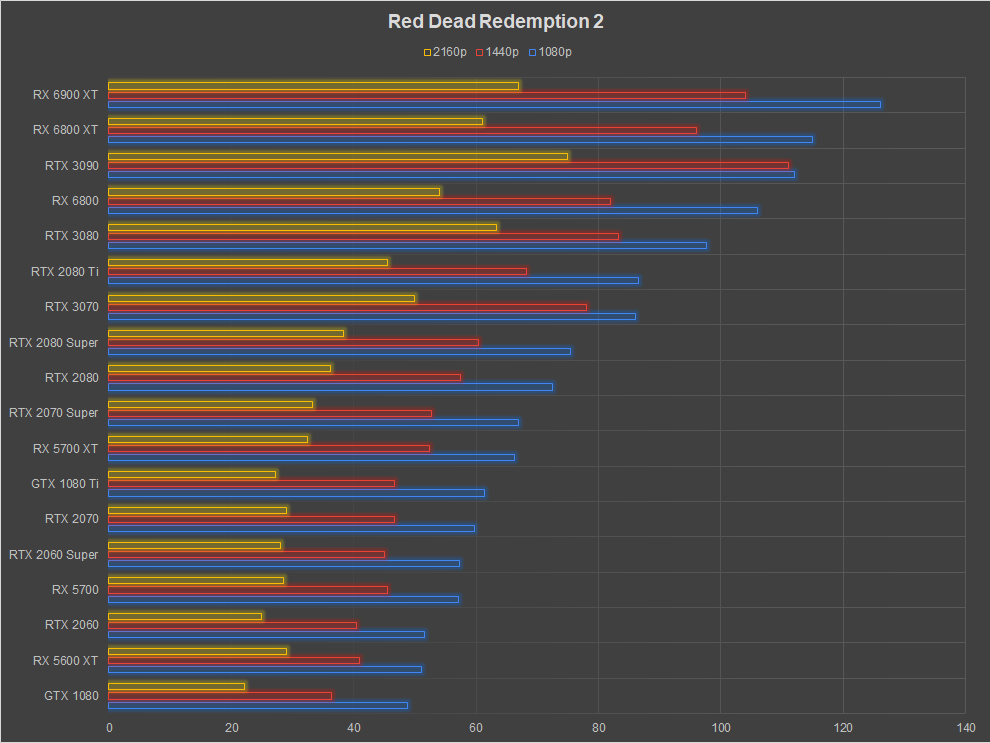

Red Dead Redemption 2

RDR2 is useful for seeing how games which utilise the Vulkan API run on modern graphics cards. At this point it’s a two-year old title from Rockstar with a great single player campaign. It’s an RPG set in the Wild West era and has a massive interactive open world.

AMD Radeon RX 6900 XT Review Red Dead Redemption 2

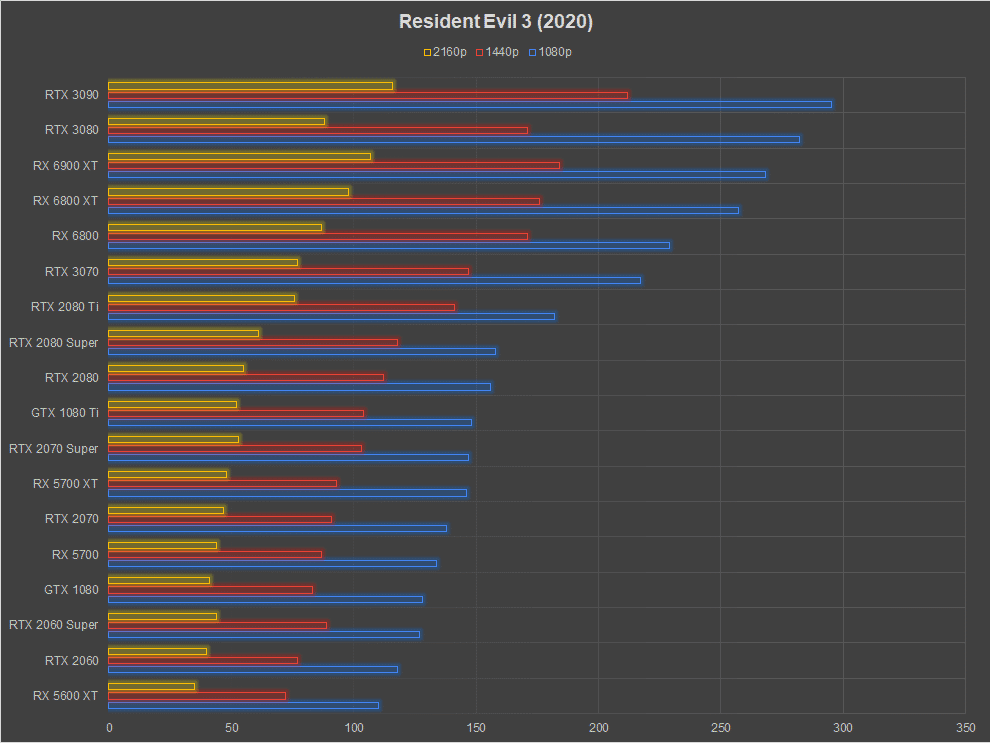

Resident Evil 3 (2020)

Resident Evil 3 (2020) is the third title in the current Resident Evil reboot and uses the same engine as the last two reboots. The game features several replay opportunities for the player to respond to threats in different ways. Performance scaling isn’t as linear in RE3 as other games and is very optimised since consoles are the primary market for this game.

AMD Radeon RX 6900 XT Review Resident Evil 3 (2020)

The Witcher 3

The latest in CDPR’s most recognisable series is a few years old at this point but scales really well. It also allows us to gauge the performance across multiple generations of GPUs. Given the older nature, this game runs on DirectX 11 and we keep most of the proprietary APIs turned off.

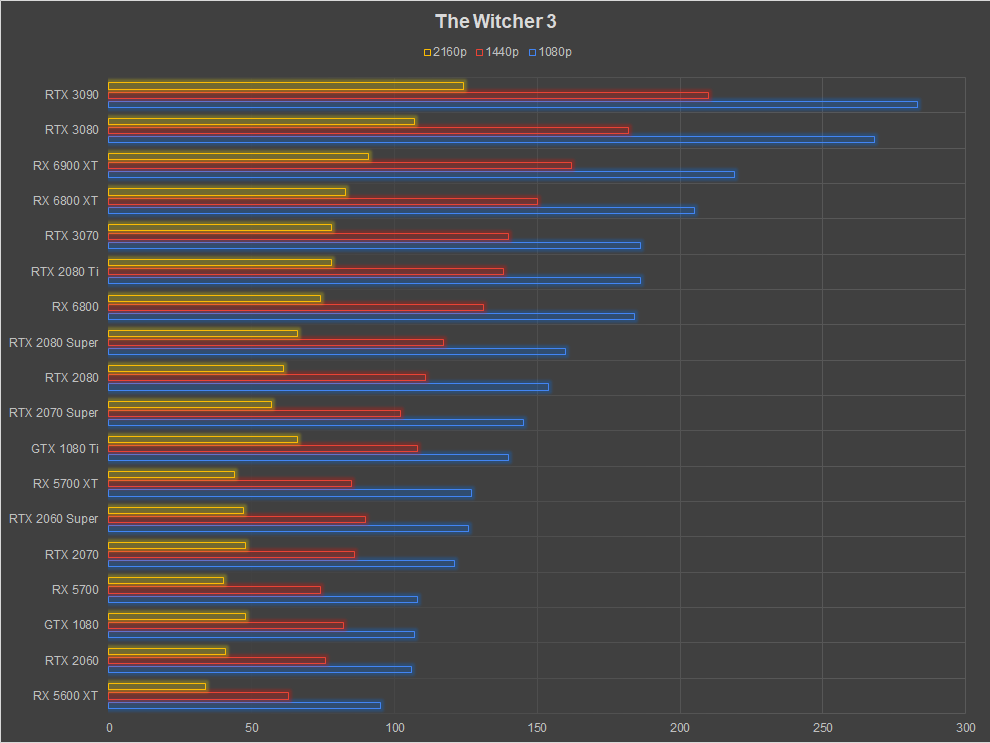

AMD Radeon RX 6900 XT Review The Witcher 3

Ray Tracing

Port Royale is the hardware-accelerated ray-tracing benchmark from UL or FutureMark as they were previously known. Since both vendors, AMD and NVIDIA, now support hardware-accelerated ray-tracing and ray-tracing is finally catching on in the market, we felt it was apt to include the benchmark. Also, all older AMD GPUs and NVIDIA…
